3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer

Brand Name : BOCHEN

Model Number : 3386F

Certification : RoHS, Reach

Place of Origin : Chengdu

MOQ : 100 Pieces

Price : $0.06 - $0.90/Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 10000000 Pieces Per Month

Delivery Time : 1-7 Workdays

Packaging Details : Standard Packing 50 Pieces/Tube

Product Name : 3386F 0.5W Cermet Trimmer Potentiometer

Resistive Element : Cermet

Mounting Style : Through hole

Adjustment Method : Top Adjustment

Resistance Range : 10Ω~5MΩ

Resistance Tolerance : ±10%; ±20%

Contact Resistance Variation (CRV) : ≤3%R or 3Ω

Electrical Travel : 220°

Rated Power(300 volts max.) : 70℃, 0.5W；125℃, 0W

Total Mechanical Travel : 250°

Contact Now

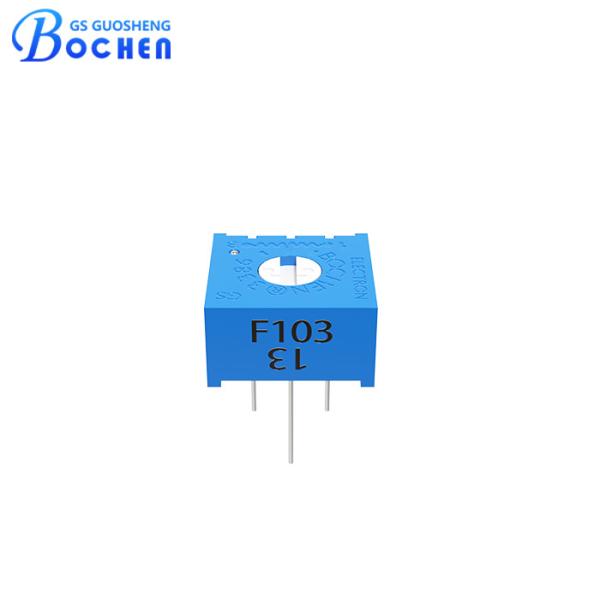

3386F 0.5W 1K 2K 5K 10K 20K 50K Single Turn Cermet Trimmer Potentiometer


Quick Detail:

• Cermet resistive material.
• Top adjustment style.
• Available with extended shaft.
• Through hole mounting method.
• PC pins terminal style.
• Wide ohms rang from 10 ohms to 5 megohms, tolerance 10%.
• Power rating 0.5w at 70℃.
• Adjustment angle 220°,mechanical angle 250°.
• Small size, fully sealed, high precision, adjustable accuracy, stable and reliable performance.


Description:

The 3386F cermet trimmer potentiometer is a high-precision component designed for optimal performance in various electronic applications. Featuring a durable cermet resistive material, this trimmer is built to last and provide stable, reliable performance over time. Its compact 3/8˝ square size and fully sealed design make it ideal for space-constrained environments and ensure protection against environmental factors.

Engineered with a top adjustment style, the 3386F allows for easy calibration and fine-tuning. It is also available with an extended shaft option for added versatility. The through-hole mounting method and PC pins terminal style facilitate straightforward integration into printed circuit boards.

This trimmer offers a wide resistance range, spanning from 10 ohms to 5 megohms, with a tolerance of 10%, suitable for a variety of precise adjustments. With a power rating of 0.5 watts at 70℃, it is capable of handling substantial electrical loads. The adjustment angle of 220° and a mechanical angle of 250° allow for precise control over the resistance setting.Overall, the 3386F cermet trimmer potentiometer is a high-precision, adjustable component known for its accuracy and reliability, making it a valuable addition to any electronic design requiring fine-tuned resistance control.


Specification:

Electrical CharacteristicsNominal Resistance Range10Ω~5MΩ
Resistance Tolerance±10%; ±20%
Terminal Resistance≤±1%R or 3Ω
Contact Resistance Variation (CRV)≤3%R or 3Ω
Insulation Resistance500 Vdc. 100 megohms min.
Withstand Voltage101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength500 Vac(1 Min.)
Electrical Travel220°
Environment CharacteristicsResistance to Solder Heat250ºC for 10 Secs.
Rated Power(300 volts max.)70ºC, 0.5W; 125ºC, 0W
Operating Temperature Range-55°C ~ + 125°C
Temperature Coefficient±250, ±100 ppm /°C
Temperature VariationΔR≤±3%R, Δ(Uab/Uac)≤±1%
Collision20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
Vibration100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C1000 hours @ 70ºC Rated Power; ΔR≤±3%R
Rotational Life200 Cycles, ΔR≤±3%R
Physical CharacteristicsTotal Mechanical Travel250°
Starting Torque≤25 mN.m
Clutch Torque≤35 mN.m



Dimension:

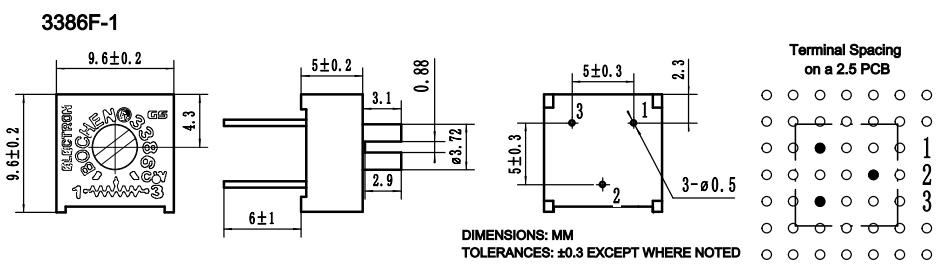

Two terminal style:

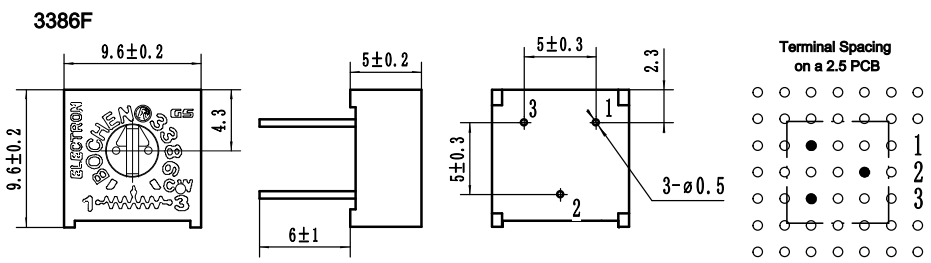

3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer
3386F 5K 10K 20K 50K Single Turn Cermet Trimpot Potentiometer


Packaging:

Packaging specification: 50 pieces per tube.


Application:

• Calibration of Electronic Devices.
• Industrial Control.
• Medical Devices.
• Communication Equipment.
• Consumer Electronics.
• Aerospace.
• Automotive Electronics.


Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
