3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer

Name: 3296WB 05w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer
Brand: Bochen
Price: 0.048 USD

Quality 3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer wholesale

Brand Name : Bochen

Model Number : 3296W-B

Certification : RoHS, Reach

Place of Origin : Chengdu

MOQ : 100 Pieces

Price : $0.048 - $0.90/Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 10000000 Pieces Per Month

Delivery Time : 1-7 Workdays

Packaging Details : Standard Packing 50 Pieces/Tube

Product Name : 3296W-B Bent Pin Cermet Trimmer Potentiometer

Rated Power(300 volts max.) : 70℃，0.5W；125℃，0W

Nominal Resistance Range : 10Ω~5MΩ

Contact Resistance Variation (CRV) : ≤3%R or 3Ω

Effective Travel : 25（±2）Turns

Rotational Life : 200 Cycles、ΔR≤±3%R

Total Mechanical Travel : 30±2 Turns

Resistance Tolerance : ±10%

Contact Now

3296W-B 0.5W Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer

Feature

• RoHS compliant.

• 25 ±2 turns effective travel.

• Thin body profile,high precision.

• Cermet elements ensure stability.

• 10Ω-5MΩ range of nominal resistance.

• Bent pin design for flexible PCB mounting.

Description

The 3296W-B trimmer potentiometer is a precision electronic component used to adjust resistance in circuits. Cermet element is used in the resistor, resulting in a more durable and stable potentiometer. Meanwhile, 3296W-B is designed with bent pins, making it more flexible for mounting on PCBs. Its compact design makes it suitable for a wide range of electronic applications, including audio equipment, instrumentation, and communications equipment.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. R1≥1GΩ
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Effective Travel	25(±2) Turns
Environment Characteristics	Weld Heat Resistance	Wave soldering: Temp: 260℃±5℃, T: 3±1 Secs. Soldering iron welding: Temp: 320℃±5℃, T: ≤2 Secs.
	Rated Power(300 volts max.)	70℃,0.5W; 125℃, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±2%R, Δ(Uab/Uac)≤±1%
	Collision	10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	30±2 Turns
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

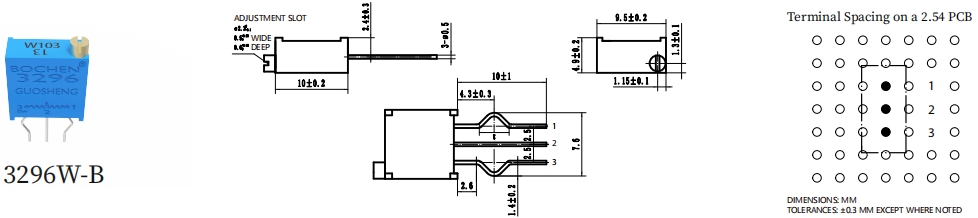

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3296W-B 0.5w Adjustable Resistance Bent Pin Cermet Trimmer Potentiometer

Packaging
Packaging specification: 50 pieces per tube, 20 tubes per box.

Application

• Industrial control.
• Communication equipment.
• Precision instruments.
• Automotive electronics.
• LCD panels.
• Switching power supplies.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
