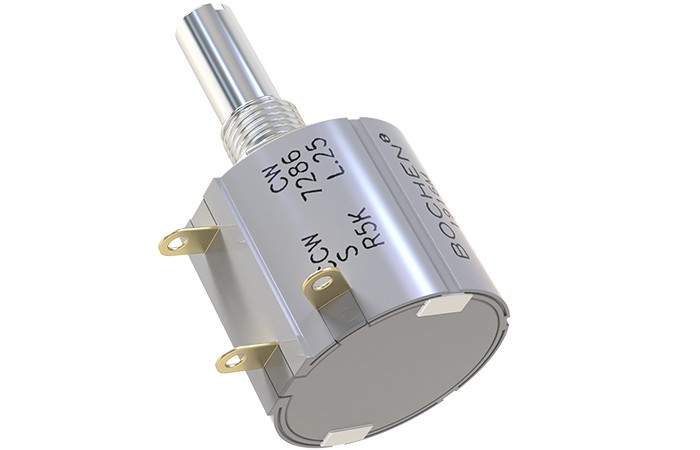

Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C

Name: Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C
Brand: BOCHEN
Price: 2.70 USD

Quality Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C wholesale

Brand Name : BOCHEN

Model Number : 7286

Certification : RoHS, REACH

Place of Origin : Chengdu

MOQ : 100 Pieces

Price : $2.70 - $6.00/Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 3,000,000 Pieces Per Month

Delivery Time : 1-7 Workdays

Packaging Details : 25 pcs/plastic box; 50 pcs/box.

Product Name : Bi 7286r100kl 25 wirewound precision potentiometer

Product Type : Wirewound Potentiometer

Element Type : Wirewound

Termination Style : Solder Turret

Mounting Style : Panel Mount

Nominal Resistance Range : 100Ω-100KΩ

Resistance Tolerance : ±5%

Independent Linearity : ±0.5%

Effective Travel : ≥3600°-10°

Rated Power : 2W@+70℃，0W@+125℃

Contact Now

Bi 7286r100kl 25 wirewound precision potentiometer

Description

The 7286 wirewound potentiometer is a high-quality component used for precise resistance control. It offers smooth and accurate adjustments, making it suitable for a wide range of applications such as audio equipment, industrial controls, and power supplies. With its durable construction and multiple resistance options, the 7286 wirewound potentiometer provides reliable performance for various electronic systems.

Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C

Feature

• Lead-free.

• RoHS 2 compliant.

• 7/8" diameter.

• 10 turn wirewound.

Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C

Specification

Electrical Characteristics	Nominal Resistance Range	100Ω-100KΩ
	Resistance Tolerance	±5%
	Independent Linearity	±0.5%
	Effective Travel	≥3600°-10°
	Terminal Resistance	≤0.2%R or 5Ω
	Noise	≤3%R or 3Ω
	Insulation Resistance	R≥1GΩ
	Withstand Voltage	101.3kPa 710V, 8.5kPa 470V
Environment Characteristics	Rated Power	2W@+70℃, 0W@+125℃
	Temperature Range	-55℃~+125℃
	Temperature Coefficient	±100ppm/℃
	Temperature Variation	ΔR≤2%R, Δ(Uab/Uac)≤±1%
	Vibration	390m/s², 4000cycles,R≤±1%R
	Collision	10-500Hz, 0.75mm, or 98m/s² , 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
	Climate Category	ΔR≤±3%R, R1≥100MΩ
	Electrical Endurance At 70°C	2W, 1000h, ΔR≤±3%R
	Mechanical Endurance	10000 cycles, ΔR≤±3%R
	Steady Damp Heat	ΔR≤±3%R, R1≥100MΩ
Physical Characteristics	Total Mechanical Travel	3600°±10°
	Starting Torque	≤36mN·m
	Clutch Torque	≤300mN·m

Dimension

Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C

Packaging

Packaging specification: 25 pieces/plastic box, 50 pieces/box.

Bi 7286r100kl 25 Wirewound Precision Potentiometer Rated Power 2W 70C Element Type 0W 125C

Applications

• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
